MRU ST – Plumber
Compact mobile unit for CNG/RNG vehicle refueling, available in mechanical or hydraulic configuration, with integrated compressor and complete accessories in only 7 m².
Discover other configurations:

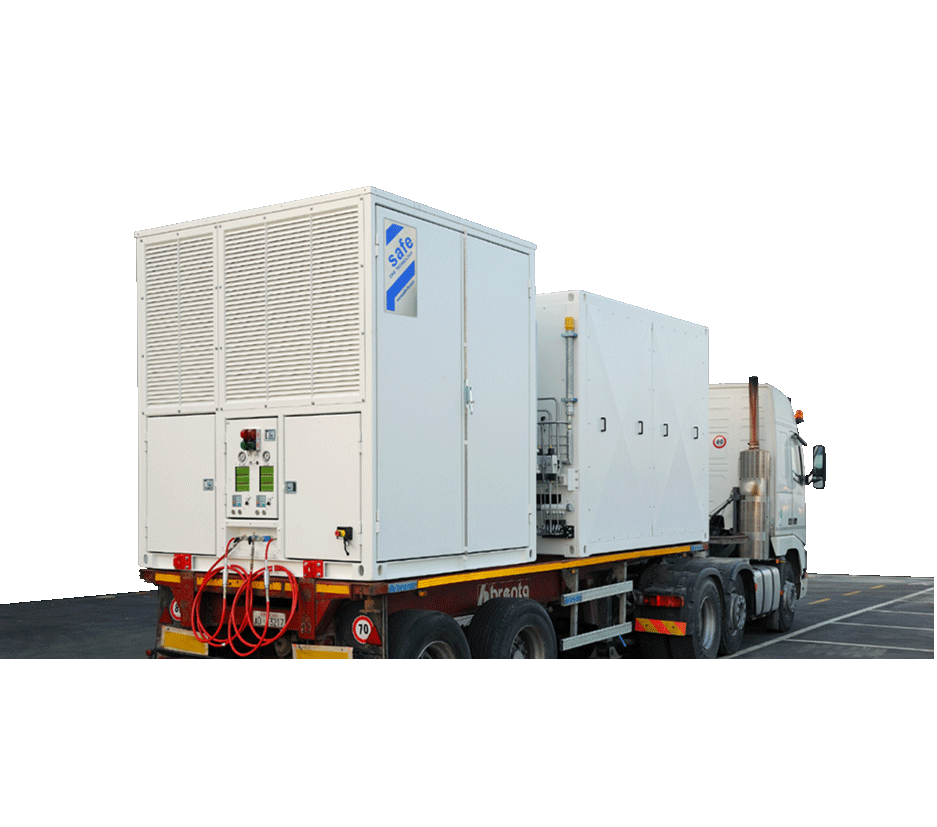

MRU (Mobile Refuelling Unit) is an integrated all-in-one solution for rapid and safe refueling of vehicles powered by natural gas or biomethane.
It is available in both a mechanical compressor configuration, ideal for high duty cycles with operational continuity, and a hydraulic version, which is more compact and quieter.
Both configurations include three-line priority panel (high, medium, low pressure), electrical panel, control system, and two refueling points with mass meters.
All components are housed in a compact, modular enclosure with two separate rooms to maximize safety and ease of maintenance.
Read more
Key benefits
– Available in mechanical (ST) or hydraulic (B) compressor configuration
– Available with compressor driven by gas engine or electric motor
– Ultra-compact solutions down to only 7 m²
– Water-cooled compressor with integrated on-board cooling
– Efficient, flexible and with installation 3 times faster than a traditional station
– Up to 2 refueling points with mass meters included
– Compatible with network or trailer/storage suction
– Enclosure with separation between ATEX zone and electrical panel room
– Ideal for remote areas, corporate fleets, temporary facilities
Main components
– Hydraulic or mechanical compressor
– 3-line priority panel (high, medium, low pressure)
– Integrated control panel for management, diagnostics and safety
– Filling panel for up to 2 filling points with mass metered included
– Integrated cooling system
– Compact structure with separate rooms
– Provision for remote access and diagnostics
Recommended applications
– Corporate fleets and public transportation
– Temporary or mobile stations for events and construction sites
– Industrial areas not served by gas network
– Supply from trailer (virtual pipeline)
– Backup for permanent fueling stations
Datasheet
Datasheet
| Technical Features | Unit of measure | Values |
| Compressor type | – | Hydraulic / Mechanical |
| Engine type | – | Electric or endothermic (IE) |
| Suction pressure | bar (psi) | 5 ÷ 75 (73 ÷ 1,088) |
| Delivery pressure | bar (psi) | 250 ÷ 50 (3,625 ÷ 725) |
| Maximum flow rate | Smc/h (SCFM) | up to 1,000 (from mains) / up to 5,000 (from trailer) |
| Power consumption | kW (Hp) | 75 ÷ 90 (100 ÷ 120) |
| Noise level | dB(A) | 75 at 3 meters |
| Footprint | m² | 7 |
| Certifications | – | EC – EAC – US |
Performance Graph
